Nitrogen is a dry, inert gas used in many commercial and industrial applications to improve quality or to prevent oxygen from damaging products and processes. For the use of liquid nitrogen or bottled nitrogen, such as the traditional gas supply method, users often have to bear some potential costs, including rent, filling fees, transportation surcharges, order processing fees and environmental protection fees, and there are also problems such as unstable transportation time and security risks.
The modular nitrogen generator uses clean and dry compressed air as raw material, selects high-quality adsorbent, and completes the separation of nitrogen and oxygen through a specific process to provide stable and continuous high purity nitrogen. More economical, more reliable, more efficient and more secure than traditional methods.

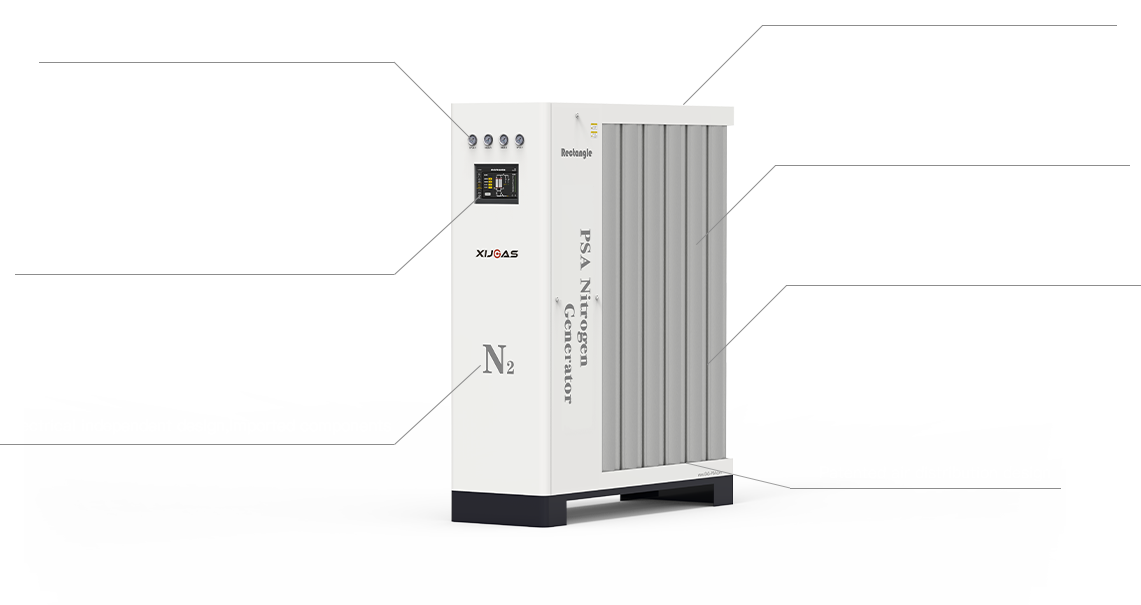

● The RE series nitrogen generator (modular nitrogen generator) consists of two rows of paired die-cast aluminum cylinders, filled with molecular sieve CMS through vacuum suction, and connected as a whole through the upper and lower air chambers to form a mutually switching adsorption separation. system.
● The clean compressed air enters a set of adsorption systems through the air flow distributor at the bottom, and passes through the CMS, where oxygen molecules and other impurities are adsorbed. Nitrogen enters the process buffer module through the compression device and the top chamber, and then passes through the filter. The purity of the gas is then detected, and the gas that does not meet the standard is vented to the atmosphere. After reaching the specified purity, the gas flows into the production line.
● After a unique program, the control system automatically switches between adsorption and blow-off processes and monitors the purity of the gas, with one module always producing nitrogen online while the other is blow-off for reduction.
Safe and reliable Compared with traditional bottled gas and liquid nitrogen, the production process is safer, the use of more worry, all the gas is in control, not affected by the transportation cycle and price |
Low noise On-site nitrogen production, unique muffler and auxiliary filling muffler structure for more peace of mind |
Easy to install Small footprint, flexible and convenient |
Conform to specifications High quality and high purity nitrogen, equipment design meets GB/T 150.1-2011 standard, nitrogen quality meets food grade E941 standard |
Performance guarantee Stable PSA technology, 100% functional and parameter testing before delivery 1 year warranty, 24×7 hours timely response |
Economic sustainability Short return on investment, nitrogen output on demand, saving operating costs |
